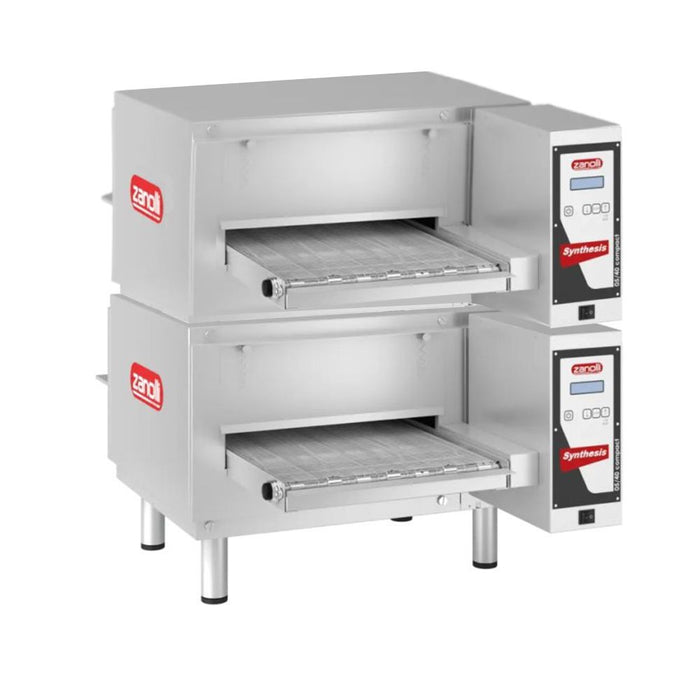

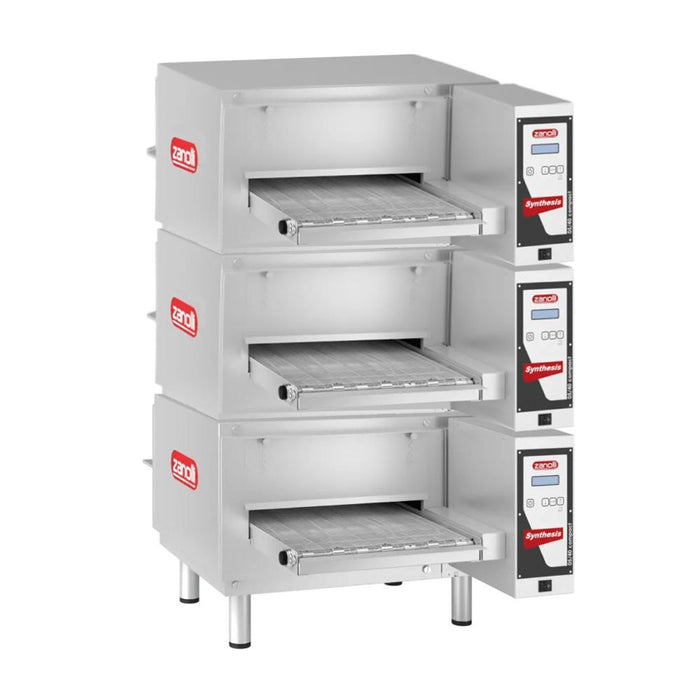

Zanolli Synthesis 05/40E 16 Inch Electric Impingement Conveyor Oven 2SV4206B
Order Processing & Delivery time
- Warehouse processing 1-3 business days.
- 1-3 business day Delivery; longer for regional areas
- Sydney pickup available - options at checkout or call us 1300 760 753
The Zanolli Synthesis Compact Electric Conveyor Oven is built for performance, precision, and consistency, delivering perfectly baked pizzas, pastries, and dishes every time. Compact yet powerful, this modular oven is available in single, double, or triple stack configurations, allowing you to expand your capacity as your business grows.
Designed and made in Italy, engineered for performance and reliability, combines Italian craftsmanship with electric efficiency, ensuring consistent, perfectly baked pizzas with every run, without the maintenance of gas or wood-fired ovens.
Key Features
- Compact & Powerful: Perfect for kitchens with limited space while maintaining professional output.
- Impingement Technology: Ensures even heat distribution for perfectly cooked pizzas and dishes.
- Modular Design: Available in single, double, or triple stack configurations to suit your production needs.
- Digital Controls: Simple user interface with adjustable conveyor speed and temperature settings.
- Energy Efficient: Designed for continuous use with consistent temperature stability up to 320°C.
- Durable Construction: Stainless steel body, reinforced components, and easy-to-clean surfaces.
- Made in Italy: Engineered by Zanolli, a trusted name in commercial baking equipment since 1952duct.
Additional (Optional) Costs
Belt Direction Change
Change belt direction from left-to-right to right-to-left
This onsite service is available only after the customer has positioned and installed the oven. The end customer can contact us at any time after installation to book the technical request. Alternatively, the dealer may arrange the request in advance on the customer’s behalf when placing the order.re information about your product.
Single Phase Voltage Conversion
Change the voltage from 3-phase 400V to single-phase 230V 27.2A
This service is carried out in-house by our technical department, where the machine is tested prior to dispatch. Please note, this service is not available onsite or after the machine has been dispatched. Dealers should request this service at the time of order if required.
Turn-Key-Service
Complete assembly and positioning of single stack conveyor ovens with its stand at the final installation location. NB: this service must be ordered prior to dispatch.
Technical Specifications
|
Model |
05/40E-1 (2SV4206B-1) | 05/40E-2 (2SV4206B-2) | 05/40E-3 (2SV4206B-3) |
|---|---|---|---|
| Configuration | Single Stack | Double Stack | Triple Stack |
| Power | 6300W | 12,600W (2×6300W) | 18,900W (3×6300W) |
| Voltage | 400V | 400V | 400V |
| Peak Phase Current | 13A | 13A (x2 Units) | 13A (x3 Units) |
| Baking Chamber Size (W×D×H) |
57×40×9 cm (1 Unit) |
57×40×9 cm (x2 Units) |
57×40×9 cm (x3 Units) |
| Conveyor Belt Size | 107×40 cm | 107×40 cm | 107×40 cm |
| Conveyor Speed | 2–30 min / Halt | 2–30 min / Halt | 2–30 min / Halt |
| Max Temperature | Up to 320°C | Up to 320°C | Up to 320°C |
| External Dimensions (W×D×H) | 127.9×80×52.5 cm | 127.9×80×91.5 cm | 127.9×80×130.5 cm |
| Package Dimensions (W×D×H) | 120×90×58 cm | 120×90×58 cm (x2) | 120×90×58 cm (x3) |
| Weight | 77 kg | 154 kg | 231 kg |
| Warranty | 2 years parts and labour | 2 years parts and labour | 2 years parts and labour |
